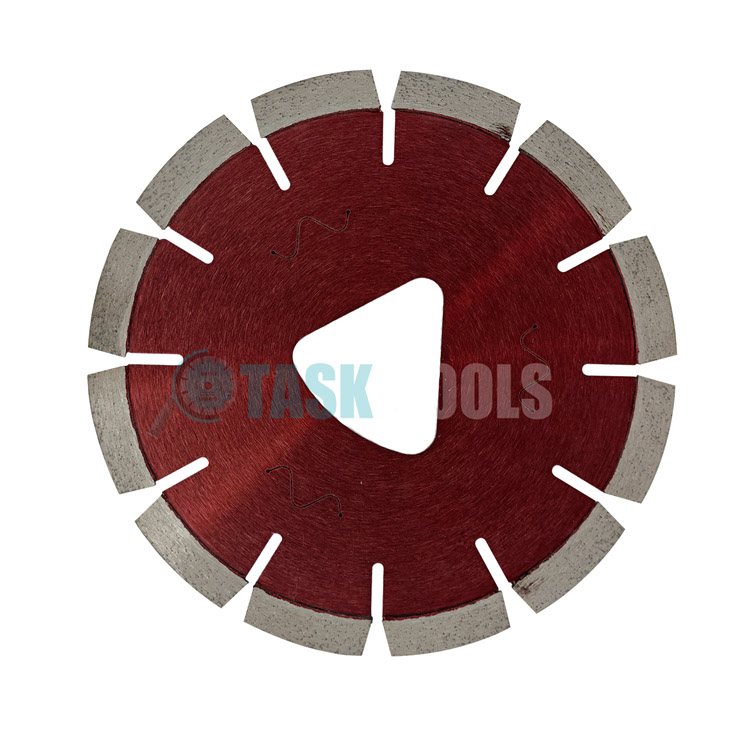

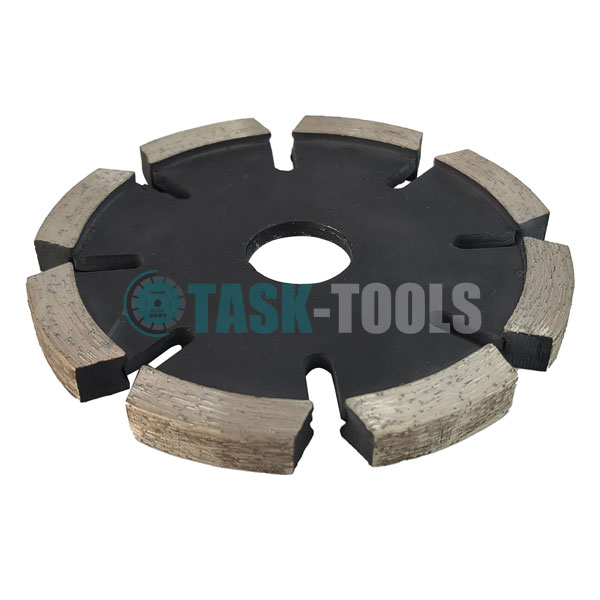

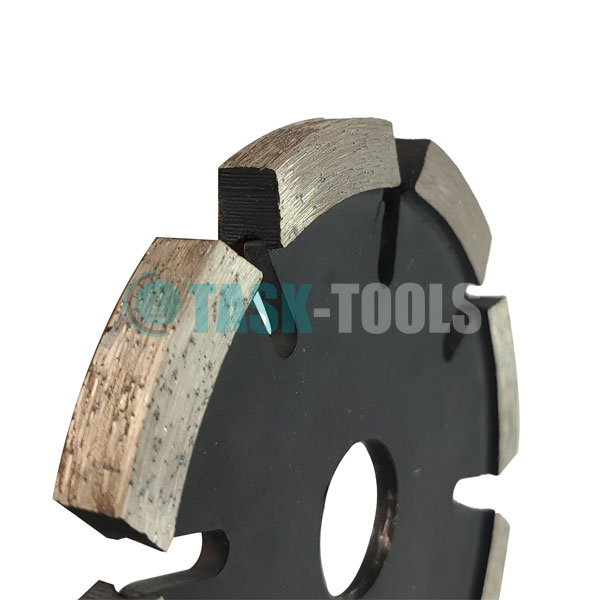

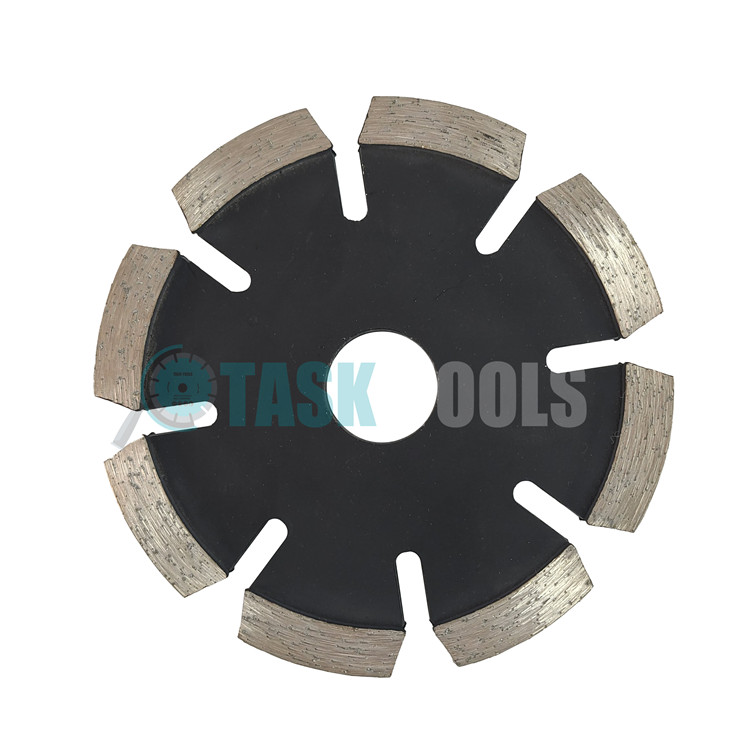

| Tuck point saw blade for wall mortar concrete masonry | |
| Material | diamond blade are made of good metal bond with high quality diamond grit |
| process: | sintered diamond saw blade for general purpose by cold pressed |
| Equipment | for use on electric circular saw and angle grinder |
| Application: | suitalbe for free cutting and dry cutting on general purpose material,reinforced concrete ,masonry and brick,abrasive materil,natural and artificial stone,building material,hard artificial stone ,ceramics,granite ,marlbe ,roof-tile,aggregated concrete,drywall,construction materials,brickwork,natural stone |
| Feature: | Suitalbe for drilling on cured concrte ,granite ,marble and other construction materials.We can provide 2 quality level ,class A and class B.Class A can provide good cutting speed and good lifespan.Class B can provide faster cutting speed and balance lifespan . We supply different quality grades diamond blade depend on the local stone concrete feature. |
| Advantage: | Long working life and superior performance,Excellent performance on hard construction material ,reinforced concrete ,brick stone ,smooth cutting on variety tile ,masonry and stone. |
|

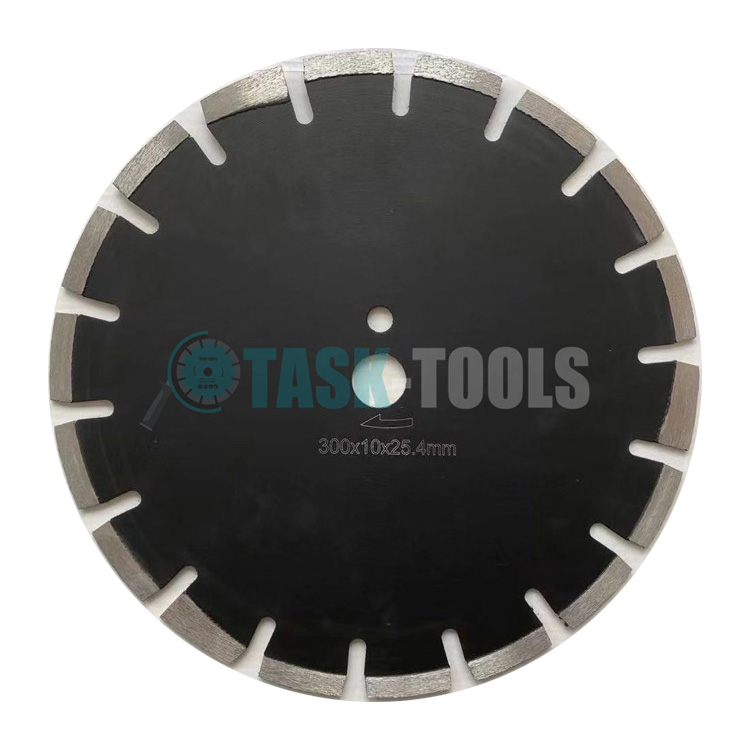

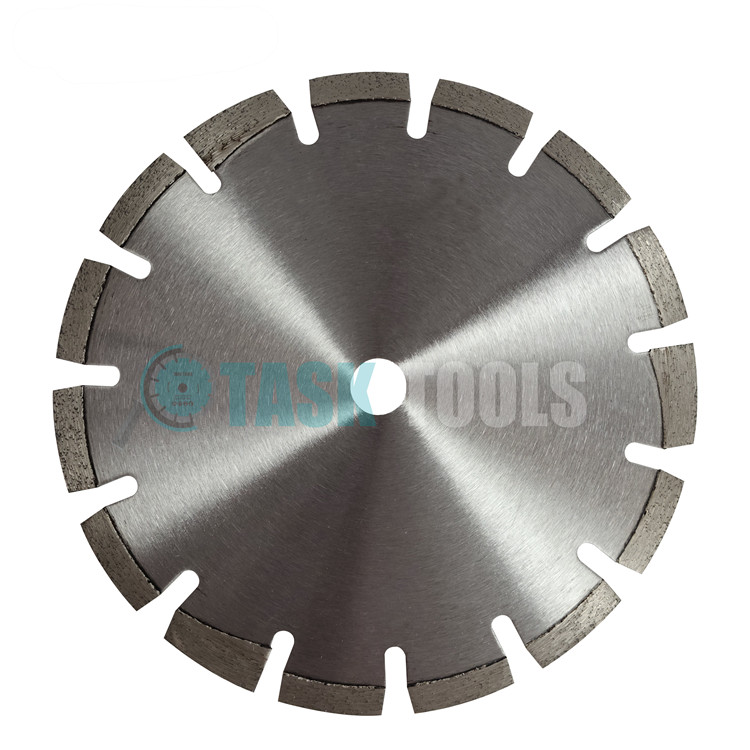

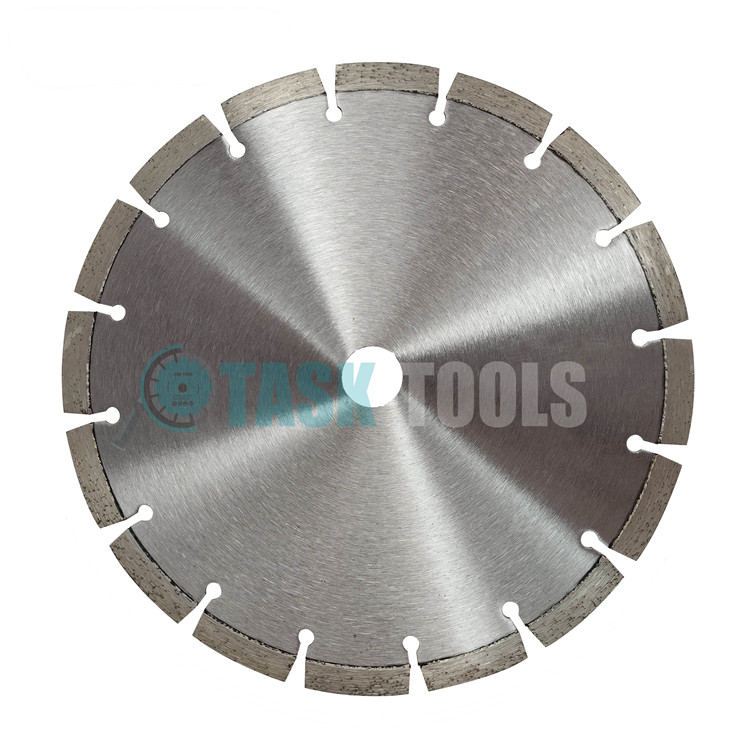

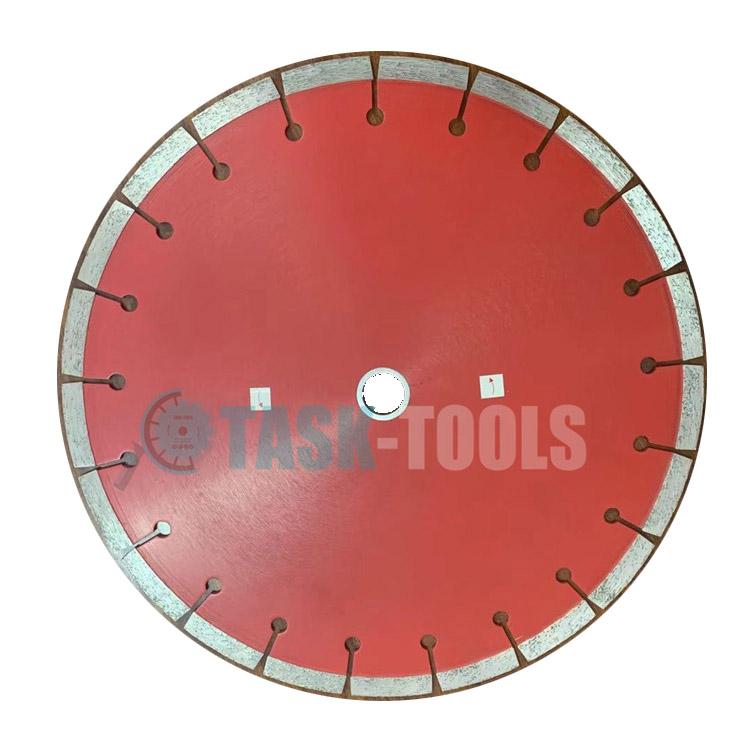

Designed to provide fast, smooth cutting. Brazed crafts. Can be used wet or dry. Segment height 16mm. Size is 350mm/400mm/500mm. Different segment heights and arbor hole size are avilable. Suitable for Cutting in a variety of materials, including cured concrete, pavers, brick, block. |
||||
| Diameter | Arbor Hole | Segment Width | Segment Height | Segment number |
| (inch/mm) | (mm) | (mm) | (mm) | |
| 350mm | 25.4 | 3.2 | 16 | 23 |
| 400mm | 25.4 | 3.8 | 16 | 27 |
| 500mm | 25.4 | 3.8 | 16 | 33 |

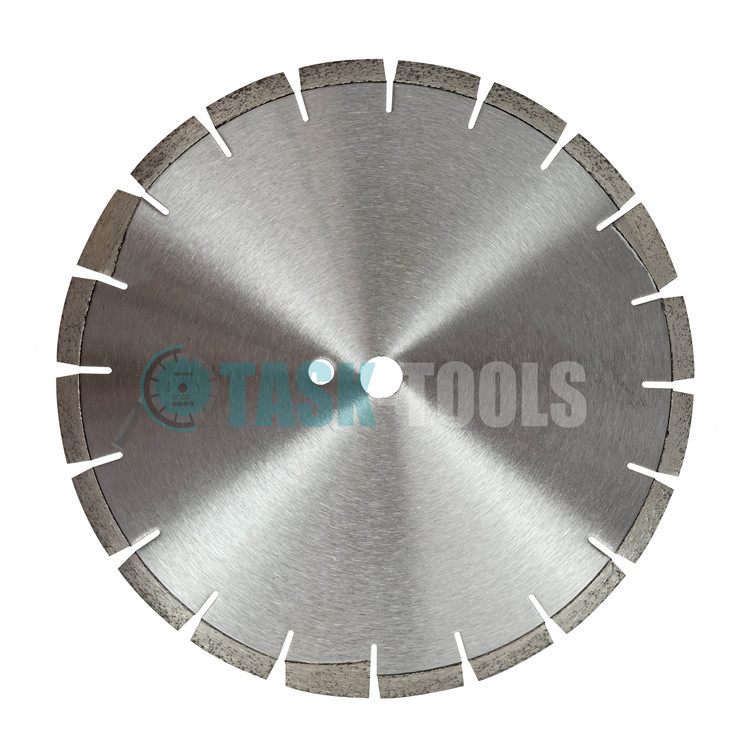

| Laser diamond metal saw blade provides superior cutting precision. Usually installed in angle grinder, used by chop saw.Solid steel wheel body greatly reduces risk of breakage for added safety, increased productivity, reduced downtime, and a lower cost per cut compared to thin bonded cutoff wheels.Maintains original wheel diameter throughout the life of the blade for better control, reach, and precision.Does not wear down like bonded abrasives reducing dust particles for a cleaner work station | ||||
| Diameter | Arbor Hole | Segment Width | Segment Height | Segment number |
| (inch/mm) | (mm) | (mm) | (mm) | |
| 115mm | 25.4/22.23/20/16 | 2 | 8 | 9 |
| 350mm | 25.4 | 3.2 | 8 | 23 |
|

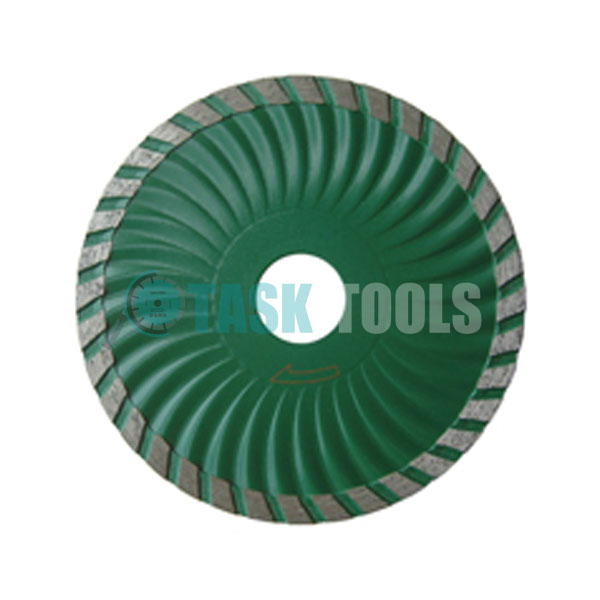

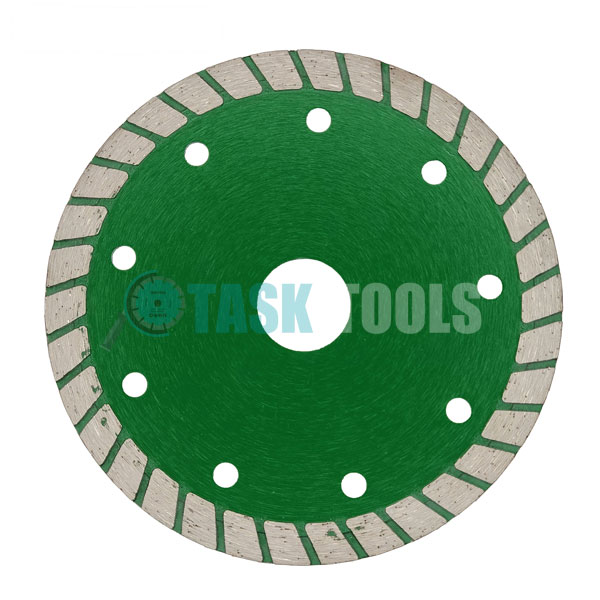

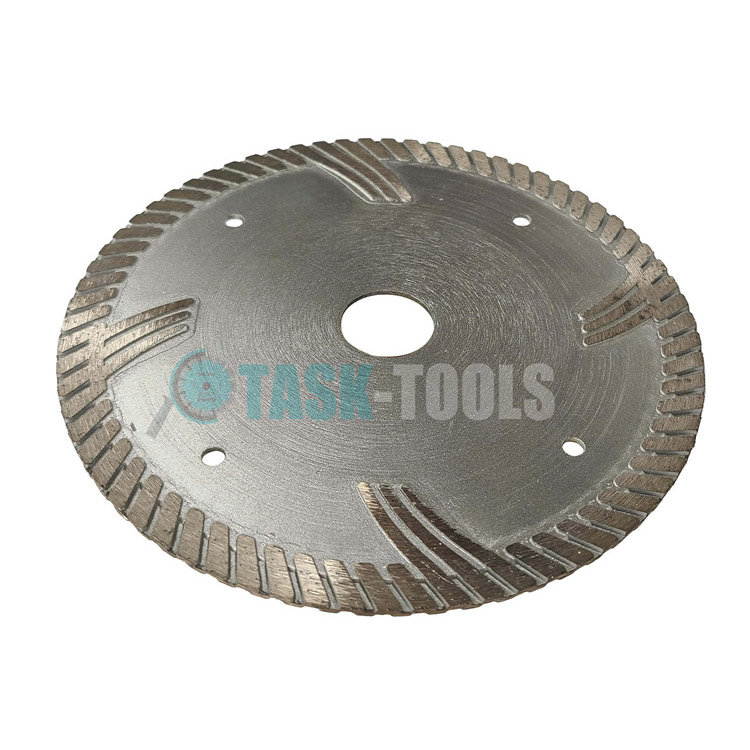

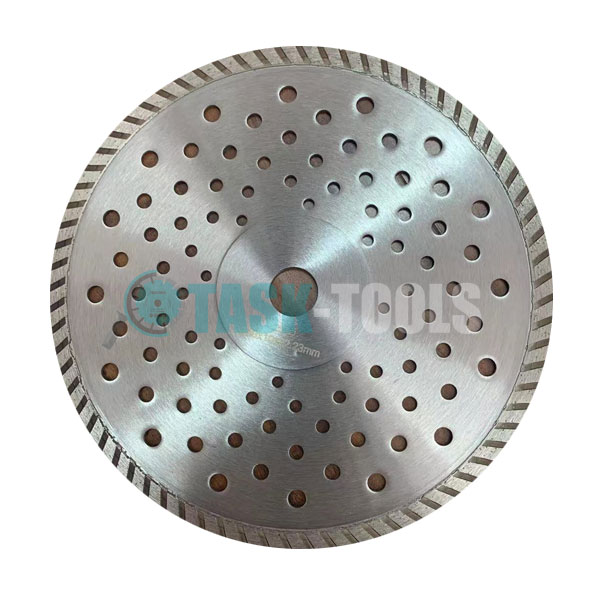

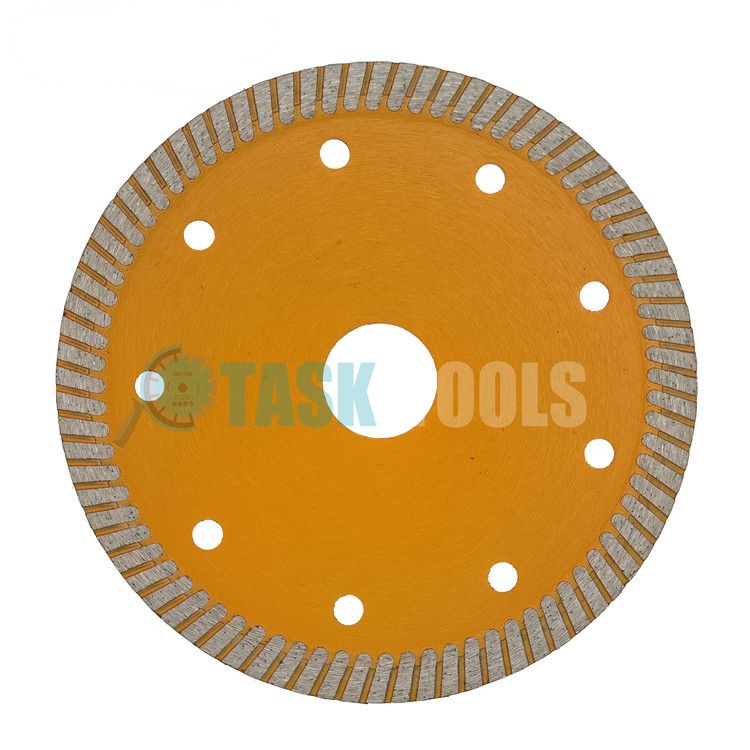

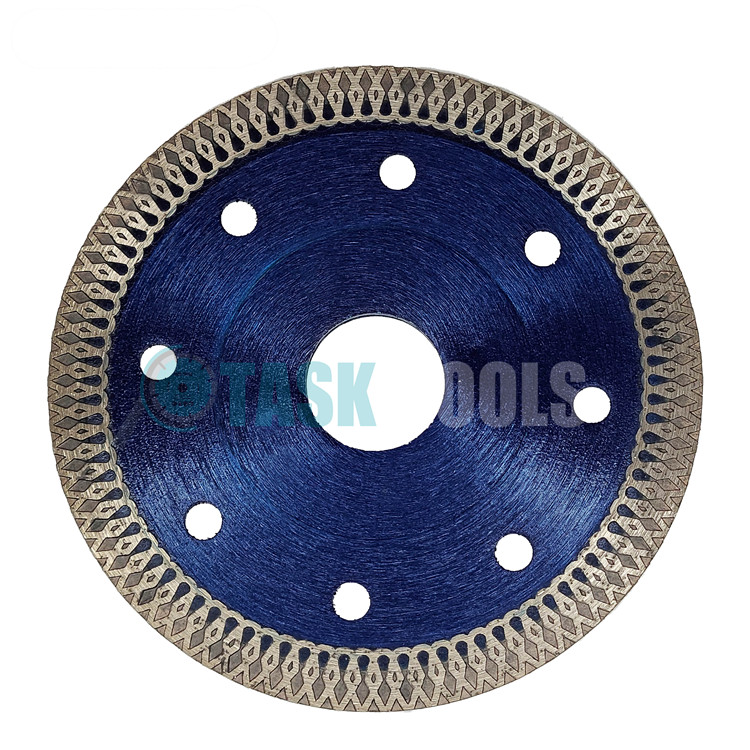

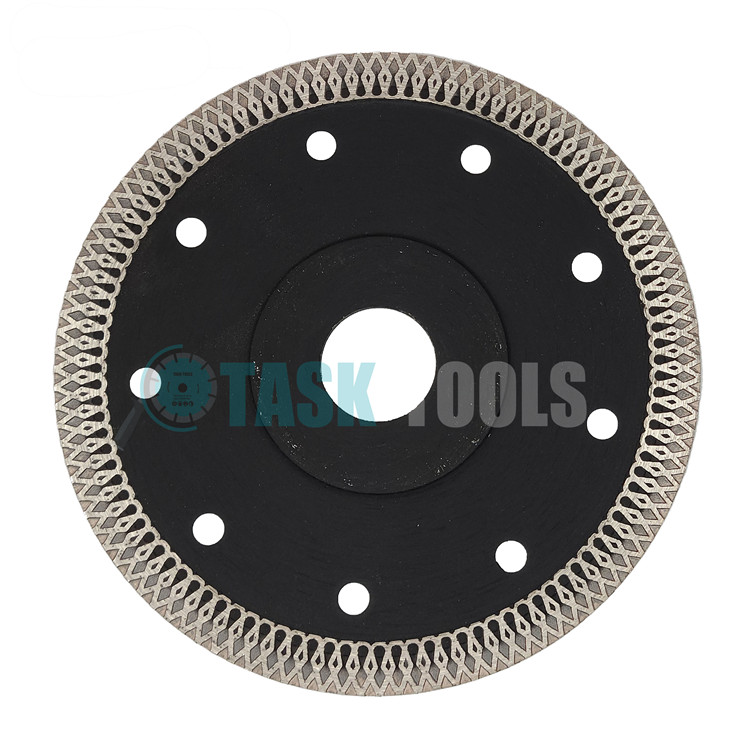

Hot pressed cutting blade designed for angle grinders particularly for cutting hard material such as porcelain, hard ceramics and quartz. Super fast cutting. Extra long life. Blade cuts extremely cool. Thin turbo-mesh rim and core for fast cutting and minimal chipping. Ideal for cutting extra hard ceramics, porcelain and other hard/dense materials. Reinforced inner core prevents flexing and provides straight cuts. |
|||
| Diameter | Segment Width | Segment Height | Arbor Hole |
| (inch/mm) | (mm) | (mm) | (mm) |
| 4” / 100 | 1.2 | 10 | 20/22.23 |
| 4 3/8” / 105 | 1.2 | 10 | 20/22.23 |
| 4.5” / 115 | 1.4 | 10 | 20/22.23 |
| 5” / 125 | 1.4 | 10 | 20/22.23 |
| 7” / 180 | 1.6 | 10 | 20/22.23 |
| 9”/ 230 | 1.8 | 10 | 20/22.23 |

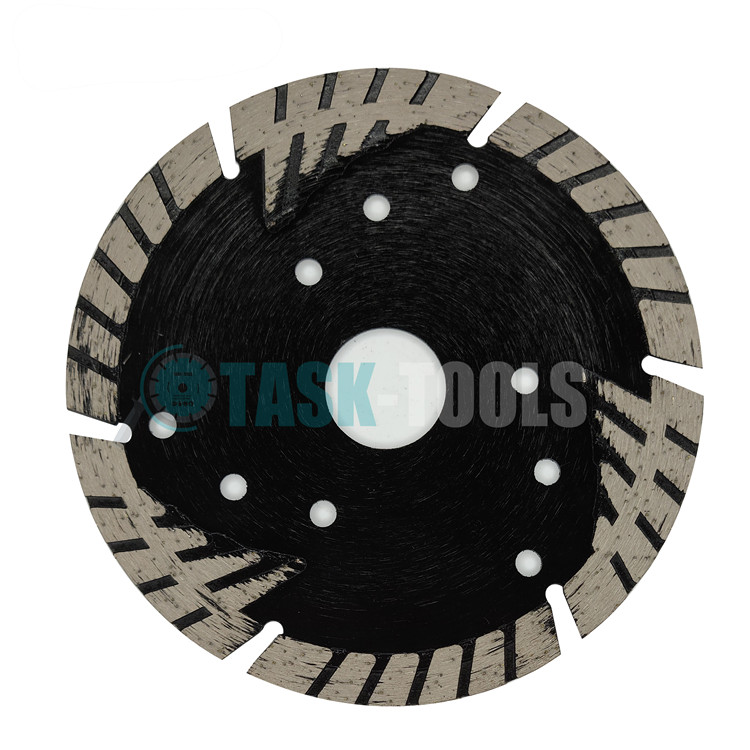

| Diamond stone cutting saw blade are fixed in angle grinders with high speed power.It could be used in block,concrete,pavers,brick and etc.And the large diamond segments with cobalt provide an ideal combination for cutting through even the toughest materials with exceptional accuracy. | |||
| Diameter | Segment Width | Segment Height | Arbor Hole |
| (Inch/mm) | (mm) | (mm) | (mm) |
| 4″/105 | 1.7 | 5/7/10mm | 22.23/20 |
| 4 3/8″/110 | 1.8 | 5/7/10mm | 22.23/20 |
| 4.5″/115 | 1.8 | 5/7/10mm | 22.23/20 |
| 5″/125 | 2 | 5/7/10mm | 22.23/20 |
| 6″/150 | 2.1 | 5/7/10mm | 22.23/20 |
| 7″/180 | 2.2 | 5/7/10mm | 22.23/20 |
| 8″/200 | 2.4 | 5/7/10mm | 22.23/20 |
| 9″/230 | 2.4 | 5/7/10mm | 22.23/20 |
| 10″/250 | 2.6 | 5/7/10mm | 25.4 |
